Pure Pursuit Lane Following with Obstacle Avoidance

Pure Pursuit Lane Following with Obstacle Avoidance

Project Resources

Project highlights

Pure Pursuit Controller with Dynamic Speed and Turn Handling
Pure Pursuit Controller with Dynamic Speed and Turn Handling

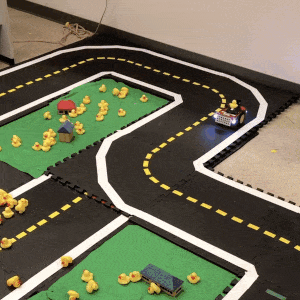

Duckiebot lane following with pure pursuit and obstacle avoidance using image processing in Duckietown

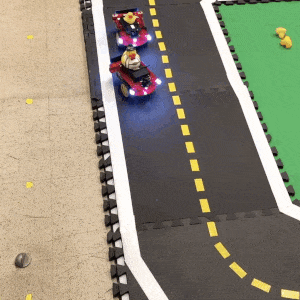

Pure Pursuit with Image Processing-Based Obstacle Detection
Duckiebots navigating curves in Duckietown using pure pursuit and obstacle avoidance with onboard object detection

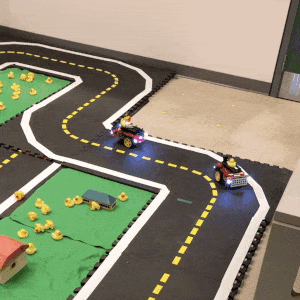

Duckiebots Avoiding Obstacles with Pure Pursuit Control

Pure Pursuit Lane Following with Obstacle Avoidance - the objectives

Pure pursuit is a geometric path tracking algorithm used in autonomous vehicle control systems. It calculates the curvature of the road ahead by determining a target point on the trajectory and computing the required angular velocity to reach that point based on the vehicle’s kinematics.

Unlike proportional integral derivative (PID) control, which adjusts control outputs based on continuous error correction, pure pursuit uses a lookahead point to guide the vehicle along a trajectory, enabling stable convergence to the path without oscillations. This method avoids direct dependency on derivative or integral feedback, reducing complexity in environments with sparse or noisy error signals.

This project aims to implement a pure pursuit-based lane following system integrated with obstacle avoidance for autonomous Duckiebot navigation. The goal is to enable real-time tracking of lane centerlines while maintaining safety through detection and response to dynamic obstacles such as other Duckiebots or cones.

The pipeline includes a modified ground projection system, an adaptive pure pursuit controller for path tracking, and both image processing and deep learning-based object detection modules for obstacle recognition and avoidance.

The challenges and approach

The primary challenges in this project include robust target point estimation under variable lighting and environmental conditions, real-time object detection with limited computational resources, and smooth trajectory control in the presence of dynamic obstacles.

The approach involves modular integration of perception, planning, and control subsystems.

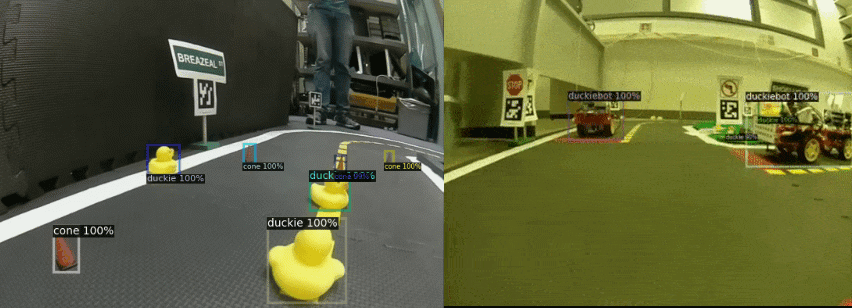

For perception, the system uses both classical image processing methods and a trained deep learning model for object detection, enabling redundancy and simulation compatibility.

For planning and control, the pure pursuit controller dynamically adjusts speed and steering based on the estimated target point and obstacle proximity. Target point estimation is achieved through ground projection, a transformation that maps image coordinates to real-world planar coordinates using a calibrated camera model. Real-time parameter tuning and feedback mechanisms are included to handle variations in frame rate and sensor noise.

Obstacle positions are also ground-projected and used to trigger stop conditions within a defined safety zone, ensuring collision avoidance through reactive control.
